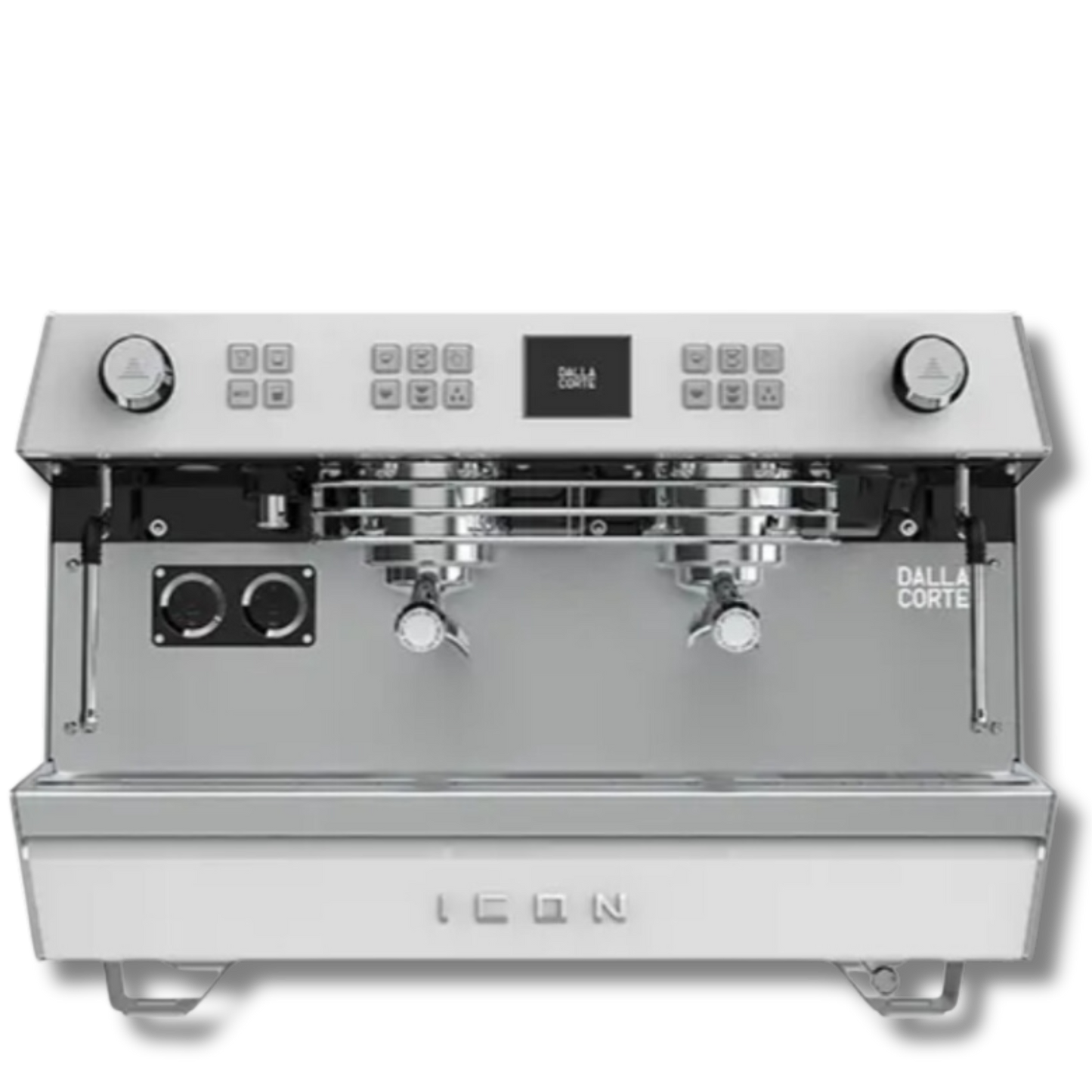

Dalla Corte Icon

MAKE YOUR COFFEE ICONIC Icon is a reliable espresso machine that can make
an excellent and consistent espresso over time, the answer to what businesses
need during their busiest hours to provide impeccable results with minimum
effort.
RELY ON THE DC SYSTEM The technologies of the DC system GCS, MCS and OCS,
make Icon an ideal candidate for the Horeca market, where high turnover rates
and frequent peak times during the day can really put quality to the test.

YOUR BRAND, YOUR ICON. Light lines and geometric cuts for the side panels
formed by a single stainless-steel shell. On the back panel there’s plenty of room
for custom projects, thanks to a wide range of RAL colorations and special custom
materials.

Specification:                  2 group                                                  3 group

dimensions (wxhxd) 730x510x525 mm                                   940x510x525 mm

weight                       77 kg                                                      95 kg

boiler capacity           8 l                                                          13 l

group head capacity 0,5 l                                                        0,5

max power                                    4,5 kW (3,9kW 200-220V3)
connected load                             380/400V3N +T 50/60 Hz
                                                      220/230 V, 50/60 Hz
                                                      200/220 V, 3 50/60 Hz

GCS Grinder Control System optional
MCS Milk Control System optional
OCS Online Control System optional
